COB, GOB, SMD Indoor Fixed LED Display

Meta Keywords：COB, GOB, SMD Indoor LED display, indoor fixed led screen, diecasting aluminum led cabinet, P0.93P5 indoor led screen, conference room led wall

Category COB, GOB, SMD Indoor Fixed LED Display

GET INSTANT QUOTE

FEATURES

Product Details

Description

Description

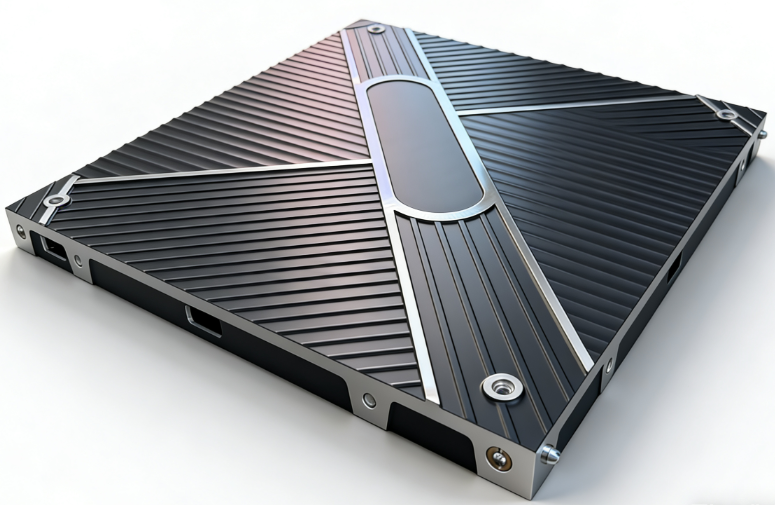

High‑performance Indoor Fixed LED Display with die‑casting aluminum cabinet, P0.93‑P5 pixel pitch options. High refresh, seamless splicing LED screen for conference rooms, lobbies & retail. Custom solutions & factory direct supply available. Get your free quote today.

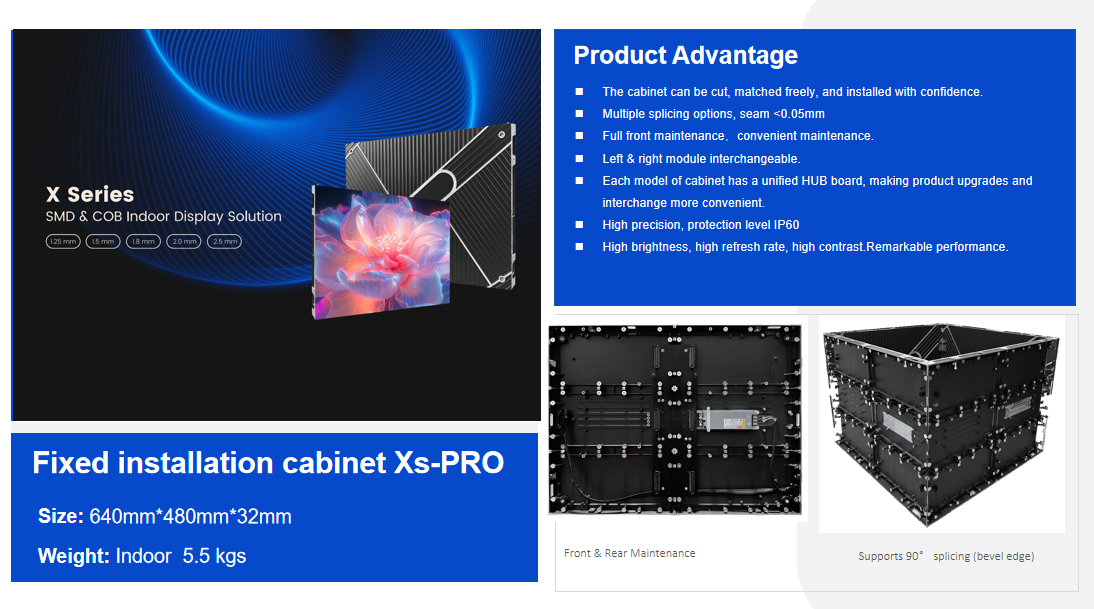

Product Advantage

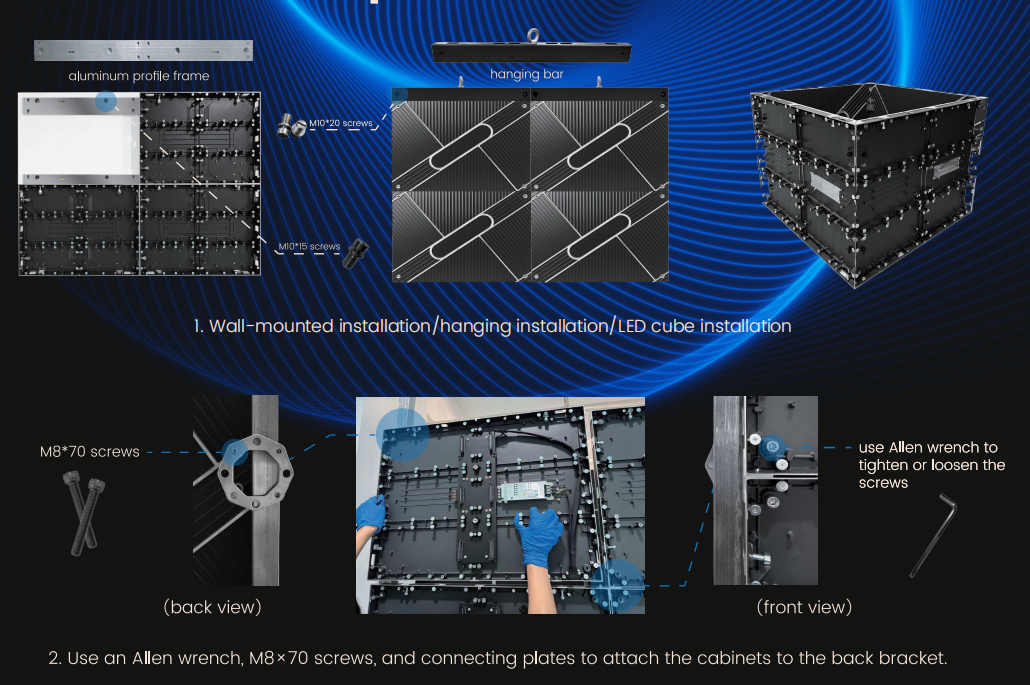

The cabinet can be cut, matched freely, and installed with confidence.

Multiple splicing options, seam <0.05mm

Full front maintenance，convenient maintenance.

Left & right module interchangeable.

Each model of cabinet has a unified HUB board, making product upgrades and interchange more convenient.

High precision, protection level IP60

High brightness, high refresh rate, high contrast.Remarkable performance.

Custom Containers FAQs

Qigao is a welder and flame cutting machines leader in China. We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

What industry are these gas cutting machine applied for?

These oxy-fuel flame gas cutting machine are well used in shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.

How to select the wanted cutting tips?

Different sizes of the cutting tips, different cutting thickness. First confirm the needed cutting thickness, then select the corresponding cutting nozzles. See below detailed parameter of G02 （acetylene）and G03 （propane）tips.

Type	No.	Gas cutting aperture(mm)	Cutting Thickness(mm)	Cutting speed (mm/min)	Oxygen pressure(Mpa)	Acetylene pressure(Mpa)
Acetylene GO₂	#00	0.8	5-10	600-450	0.2-0.3	>0.03
	#0	1.0	10-20	480-380	0.2-0.3	0.03
	#1	1.2	20-30	400-320	0.25-0.35	0.03
	#2	1.4	30-50	350-280	0.25-0.35	0.03
	#3	1.6	50-70	300-240	0.3-0.4	0.04
	#4	1.8	70-90	260-200	0.3-0.4	0.04
	#5	2	90-120	210-170	0.4-0.6	0.04
	#6	2.4	120-160	180-140	0.5-0.8	0.05
	#7	2.8	160-200	150-110	0.6-0.9	0.05
	#8	3.2	200-280	90-60	0.6-1.0	0.05
	#9	3.6	270-350	90-60	0.7-1.1	0.05
	#10	4	350-400	70-50	0.7-1.2	0.06

Type	No.	Gas cutting aperture(mm)	Cutting thickness(mm)	Cutting speed (mm/min)	Oxygen pressure(Mpa)	Acetylene pressure(Mpa)
Propane GO3	#0	0.7	5-10	800-450	0.2-0.3	>0.03
	#1	0.9	10-20	480-300	0.2-0.3	0.03
	#2	1.2	20-35	400-320	0.3-0.4	0.03
	#3	1.5	35-60	350-280	0.3-0.4	0.03
	#4	1.8	60-90	300-240	0.4-0.6	0.04
	#5	2.1	90-130	260-200	0.4-0.6	0.04
	#6	2.5	130-180	220-180	0.4-0.6	0.04
	#7	2.7	180-250	200-160	0.5-0.7	0.05
	#8	3.1	250-330	180-140	0.5-0.7	0.05
	#9	3.5	330-380	130-90	0.6-0.8	2.05
	#10	4.0	380-450	90-50	0.6-0.8	0.05

Can these gas cutting machines do circling-cutting and plasma cutting?

Yes, they can. Our standard machines are with the circling-parts to do extra circling cutting, including their main straight-line cutting function. What’s more, the plasma cutting also is available.

What is the differences between CG1-30A and CG1-30B?

The main differences between CG1-30A and CG1-30B is the working rail. 30A is with “H” rail, 30B is with hole rail. You can select the wanted rail before confirm the order. The rail is different, the price will be different.

How many welding machines do you have?

MIG welders, TIG welders, MMA welders, hand spot welding machines, welding carriage and portable spot welding machines, stud welding machines and so on.

What is the warranty time for welding and cutting machines?

What is the warranty time for welding and cutting machines.
